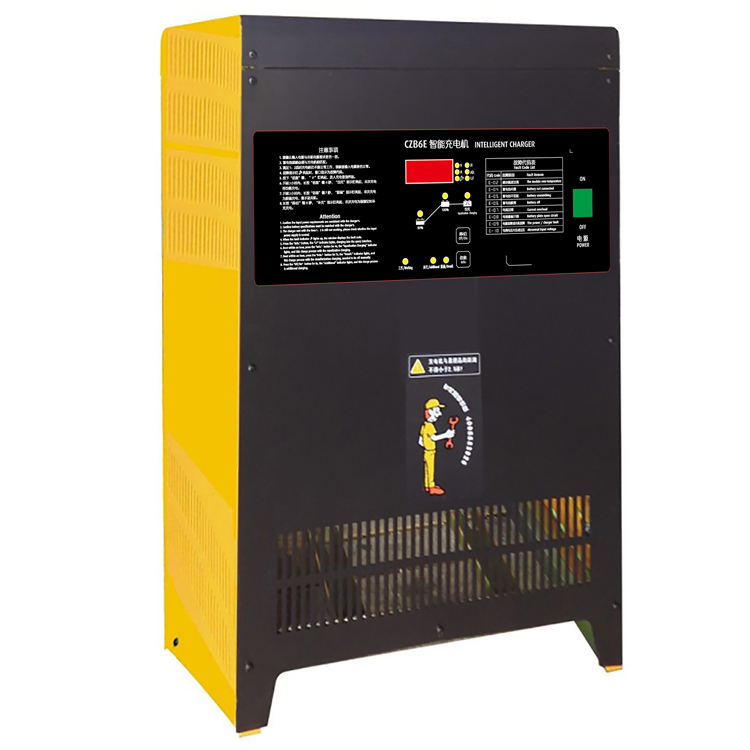

CZB6E-D

Model: CZB6E-D

Product Introduction

The main circuit of CZB6E Series intelligent charger use reliable leakage transformer ,rectifier diode and charge controller to achieve standard control of Wsa charging control; The built-in charging curve adopts the optimized sufficient judgment method to monitor the status of the battery, the charging current and the voltage value in real time, and adapt to the changes of the charging machine parameters in time can meet charging requirement of different batteries in different applications and work conditions automatically.

The CZB6E series charger is such an intelligent charger which is simple in structure, easy to use with various protection function. The charging controller automatically saves 70 times of history data, which makes it easy to query customers' charging habits; It is widely used for charging lead-acid batteries of electric pallet, forklift, carrier, lift, sightseeing bus and other vehicles.

Product Parameters:

Main function:

1) Adopt standard charging curve Wsa which applies to different kinds of open-end lead acid batteries.

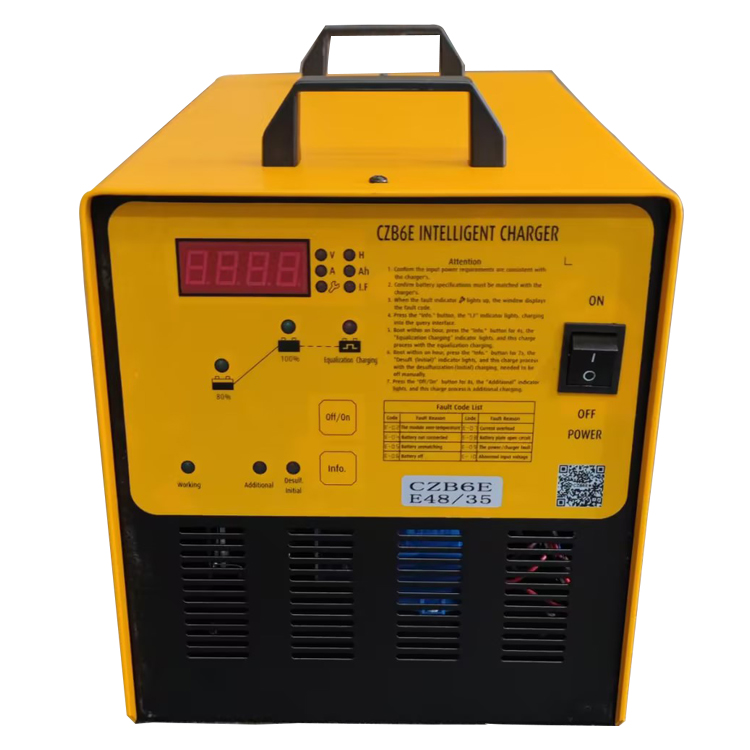

2) The high light LED will indicate the charger’s running status. The Nixie tube will display charging parameters in charging process such as battery voltage,charging current,capacity and time. When the fault happens, it will display the fault code.

3) Button function: Different combination of the buttons can achieve the functions of start, pause, data query and parameters setting.

4) Delay start function: The charger will automatically check the start up condition, 5 seconds were delayed to connect the main circuit which ensure the safety of the operator.

5) Judgement of fully charged: Automatically test the charging current, voltage, input voltage and judge the variation trend of the related testing. The built-in charging judgement method will ensure that every charging process is the best to fit the built-in properties of the different kinds of battery and achieve the suitable proportion of the battery with lowest temperature rise.

6) Adjustable charging effect: Through adjusting the charging effect coefficient, the charging effect will be improved and apply to the charging requirements of different kinds of lead acid batteries. The charging coefficient range: 1.00-1.30

7) Function of charging data record: The charger has built-in memory devise which can record 70 charging records after finishing charging. The users can check and query the charging history for correct bad charging habits.

8) Completed functions of protection and alarm: The charger functions of fault protection and alarm such as open circuit, over load, short circuit, overheating of the transformer,fault phase of power, over/under voltage of power and so on.

9) Selection of various charging mode: The charger has different charging modes such as manual equalizing charge, plus current charge,desulfurization charge mode and timed supplement charge to meet different charging requirements of different batteries in different life cycle.

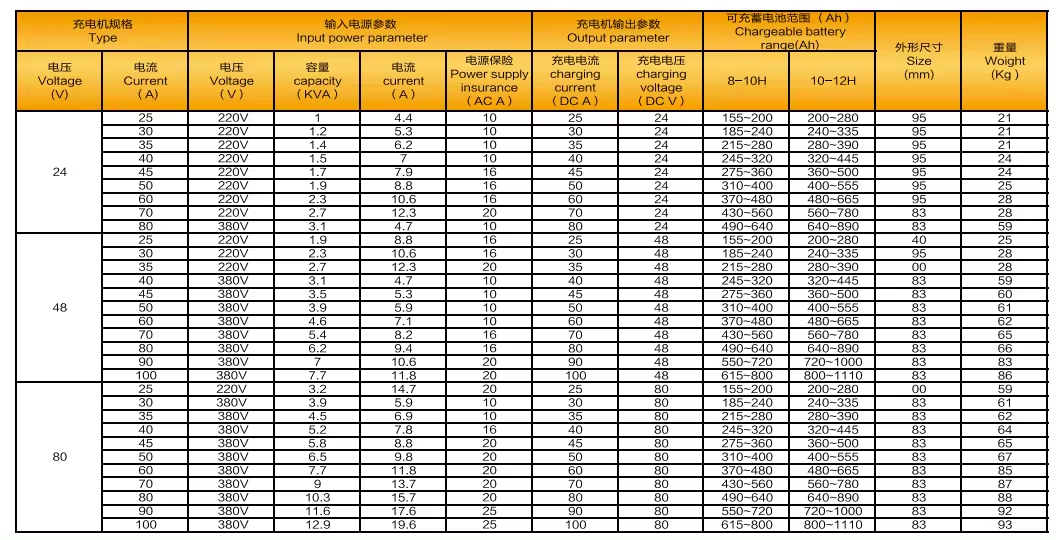

Technical Data

Single Phase

Input Voltage 220V 1P

Three Phase

Input Voltage 380V3P

E24V/30A	220	1.2	5.3	30	24	185~240	240~335	238×430×295	21
E24V/35A	220	1.4	6.2	35	24	215~280	280~390	238×430×295	21
E24V/40A	220	1.5	7.0	40	24	245~320	320~445	238×430×295	24
E24V/45A	220	1.7	7.9	45	24	275~360	360~500	238×430×295	24
E24V/50A	220	1.9	8.8	50	24	310~400	400~555	238X430X295	25
E24V/60A	220	2.3	10.6	60	24	370~480	480~665	238×430×295	28
E24V/70A	220	2.7	12.3	70	24	430~560	560~780	238×430×295	30
E24V/80A	220	3.1	14.1	80	24	490~640	640~890	280×430×300	37
E36V/30A	220	1.7	7.9	30	36	185~240	240~335	238×430×295	24
E36V/35A	220	2.0	9.2	35	36	215~280	280~390	238×430×295	25
E48V/25A	220	1.9	8.8	25	48	155~200	200~280	238×430×295	25
E48V/30A	220	2.3	10.6	30	48	185~240	240~335	238×430×295	28
E48V/35A	220	2.7	12.3	35	48	215~280	280~390	238×430×295	30
E48V/40A	220	3.1	14.1	40	48	245~320	320~445	280×430×300	37
E72V/25A	220	2.9	13.2	25	72	155~200	200~280	280×430×300	35

Specifica tion	Input Power AC V	Input power kVA	Input current AC A	0utput current DC A	Battery parameters			Outline dimension mm	Net weight Kg
					V	Ah
					V	8-10h	10-12h
D48V/50A	380	3.1	4.7	40	48	245~320	320~445	466×360×783	59
D48V/60A	380	3.5	5.3	45	48	275~360	360~500	466×360×783	60
D48V/50A	380	3.9	5.9	50	48	310-400	400-555	466×360×783	61
D48V/60A	380	4.6	7.1	60	48	370~480	480~665	466×360×783	62
D48V/70A	380	5.4	8.2	70	48	430~560	560~780	466×360×783	65
D48V/80A	380	6.2	9.4	80	48	490~640	640~890	466X360X783	66
D48V/90A	380	7.0	10.6	90	48	550~720	720~1000	526×360×883	83
D48V/100A	380	7.7	11.8	100	48	615~800	800~1110	526×360×883	86

D48V/110A	380	8.5	12.9	110	48	675~880	880~1220	526×360X883	88
D48V/120A	380	9.3	14.1	120	48	735~960	960~1335	526×360X883	89
D48V/130A	380	10.1	15.3	130	40 上0	800~1040	1040~1445	526×360×883	91
D48V/150A	380	11.6	17.6	150	48	920~1200	1200~1670	526×360×883	94
D80V/30A	380	3.9	5.9	30	80	185~240	240~335	466×360×783	61
D80V/40A	380	5.2	7.8	40	80	245~320	320~445	466×360×783	64
D80V/45A	380	5.8	8.8	45	80	275~360	360~500	466X360X783	65
D80V/50A	380	6.5	9.8	50	80	310~400	400~555	466×360×783	67
D80V/60A	380	7.7	11.8	60	80	370~480	480~665	526×360×883	85
D80V/70A	380	9.0	13.7	70	80	430~560	560~780	526×360X883	87
D80V/80A	380	10.3	15.7	80	80	490~640	640~890	526×360×883	88
D80V/90A	380	11.6	17.6	90	80	550~720	720~1000	526×360×883	92
D80V/100A	380	12.9	19.6	100	80	615~800	800~1110	526×360×883	93
D80V/150A	380	19.4	29.4	150	80	920~1200	1200~1670	526×360X883	120
